Super Capacitor3.0V3.5F,It is applied to port gantry cranes

Super Capacitor3.0V3.5F,It is applied to port gantry cranes
Super Capacitor3.0V3.5F,It is applied to port gantry cranes

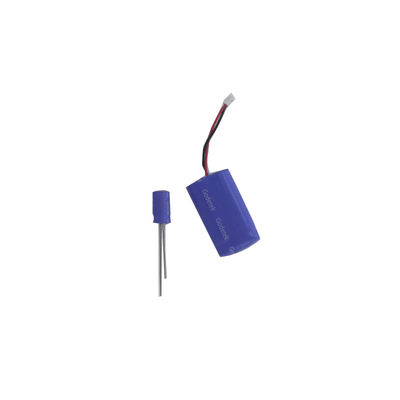

Image Grand :  Super Capacitor3.0V3.5F,It is applied to port gantry cranes

Détails sur le produit:
Place of Origin: CHINA
Nom de marque: CL
Numéro de modèle: 3.0V3.5F
Contact

Super Capacitor3.0V3.5F,It is applied to port gantry cranes

description de
Courant de pointe: 0.54A Personnaliser: fournissez les services d'échantillon
Température de fonctionnement: -40 à +85 °C @2,7 V Durée du cycle: Ajouter les expériences de tension nominale, de charge et de décharge à température ambiante 500 000
Caractéristiques de la température: + 85°C △C/C ≤ 30%, ESR ≤ 25°C) - 40°C △C/C ≤ 30%, ESR ≤ 4 (25°C) Tension nominale: 2.7V
Temps de charge/décharge: Rapide 72 heuresCurrent de fuite ((@ 25°C): 6 μA
Mettre en évidence:

3.0V 3.5F super capacitor

,

super capacitor for port cranes

,

gantry crane super capacitor

Super Capacitor 3.0V 3.5F
Applied to port gantry cranes and other demanding industrial applications.
Product Description
The Super Capacitor is a high capacity capacitor designed to meet the demanding requirements of modern electronic devices. With a rated voltage of 2.7V, this super capacitor offers reliable performance for a wide range of applications.
Cycle durability is a key feature of this high capacity capacitor. It has undergone rigorous testing including charge and discharge experiments at room temperature cycled 500,000 times. The △C/C value is maintained at ≤30% and the Equivalent Series Resistance (ESR) is kept at ≤4 throughout the cycles, ensuring consistent and long-lasting performance.
Steady-state damp heat testing further demonstrates the robustness of this high capacity capacitor. Exposed to a temperature of +40℃ and 90-95% relative humidity for 240 hours, the △C/C value remains ≤30% of the specified value, with ESR ≤4 times the specified value.
Technical Parameters
Parameter Value
Peak current 0.54A
Surge voltage 2.85V
Charge/Discharge Time Rapid
Steady-state damp heat +40℃, 90-95%RH, 240h, ︱△C/C︱≤30%, ESR≤4
Weight Lightweight
Cycle durability 500,000 cycles, ︱△C/C︱≤30%, ESR≤4
Leakage current (@25℃) 6 μA for 72hrs
Operating temperature -40~ +85 ℃ @2.7V
ESR DC @25℃, ≤1500 MΩ / AC 1kHz @25℃ ≤240 MΩ
Customization Provide Sample Services
Applications
CL Super Capacitor is designed for various industrial applications including port gantry cranes, industrial machinery, renewable energy systems, and consumer electronics. Its rapid charge/discharge time makes it ideal for situations where quick energy storage and release are required.
With an operating temperature range of -40~ +85 ℃ @2.7V, the capacitor ensures stable performance in both extreme cold and hot environments. Its resilience to temperature variations (maintaining performance at +85℃ and -40℃) makes it reliable in diverse settings.
Customization
Brand Name: CL
Place of Origin: CHINA
Rated voltage: 2.7V
High temperature load: +85℃≤2.7V, 1000h, ︱△C/C︱≤30%, ESR≤4
72hrs Leakage current (@25℃): 6 μA
Cycle durability: 500,000 cycles, ︱△C/C︱≤30%, ESR≤4
Support and Services
Our technical support team provides assistance with installation, troubleshooting, and product specifications. We also offer product training, maintenance programs, and custom solutions tailored to your specific requirements.
Packing and Shipping
The super capacitor is carefully packaged in sturdy cardboard boxes with foam inserts for protection. Orders are processed within 1-2 business days and shipped via trusted courier services with tracking numbers provided.
Super Capacitor3.0V3.5F,It is applied to port gantry cranes 0
FAQ
Q: What is the brand name of this Super Capacitor?
A: The brand name of this Super Capacitor is CL.
Q: Where is this Super Capacitor manufactured?
A: This Super Capacitor is manufactured in China.
Q: What is the voltage rating of the CL Super Capacitor?
A: The voltage rating of the CL Super Capacitor is 2.7V.
Q: Can the CL Super Capacitor be used in extreme temperatures?
A: Yes, the CL Super Capacitor is designed to function effectively in temperatures ranging from -40℃ to +85℃.
Q: Is the CL Super Capacitor suitable for high-performance electronic devices?
A: Yes, the CL Super Capacitor is ideal for use in high-performance electronic devices due to its reliable performance and quality.
