Name: MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V
Brand: Dongguan Chenglue Electronic co.,Ltd
SKU: Le MAGE
Price: 3 USD
Availability: InStock

MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V

Image Grand : MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V

Détails sur le produit:

Lieu d'origine:	la chiane
Nom de marque:	littelfuse
Certification:	E71747
Numéro de modèle:	Le MAGE

Conditions de paiement et expédition:

Quantité de commande min:	500
Prix:	3USD
Détails d'emballage:	200x200x200cm
Conditions de paiement:	T/T
Capacité d'approvisionnement:	300000

Contact

MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V

description de

Mettre en évidence:

Fuses pour véhicules électriques lourds

Fuses pour véhicules électriques de 32 V

Fuses de véhicules électriques

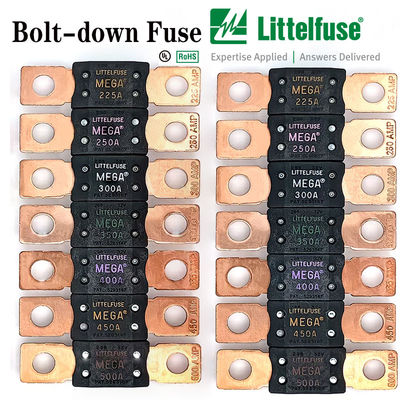

MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V 0
Description

MEGA® SLO-BLO® automotive fuses employ diffusion pill technology

to provide time-delay circuit protection. MEGA fuses are ideal for

use on batteries, alternators, and heavy gauge wire harnesses that

experience large inrushes of current. The MEGA SLO-BLO fuses with

ratings of 40 A to 250 A ensure continuous current flow. Use MEGA

fuses with ratings of 300 A to 500 A only for short circuit protection.
Features & Benefits

SEPCIFACATONGS

Voltage Rating: 32 V DC

Interrupting Rating: 2000 A @ 32 V DC

Recommended

Environmental Temperature:

–40 ˚C to +125 ˚C

Terminals Material: Copper (Silver plated copper available)

Housing Material: PPA-GF33HS

(U.L. 94 Flammability rating - HB)

Clear Top Housing Material: PES (top)

(U.L. 94 Flammability rating - V0)

PPA-GF33HS (bottom)

(U.L. 94 Flammability rating - HB)

Mounting Torque M6: 8-14 Nm

Mounting Torque M8: 12-18 Nm

Comply With: ISO 8820-5

Dimensions

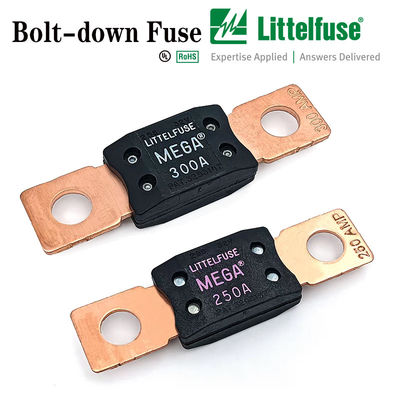

MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V 2
